Flexible Flat Cable for TTL LCD Monitors

Quick Answer

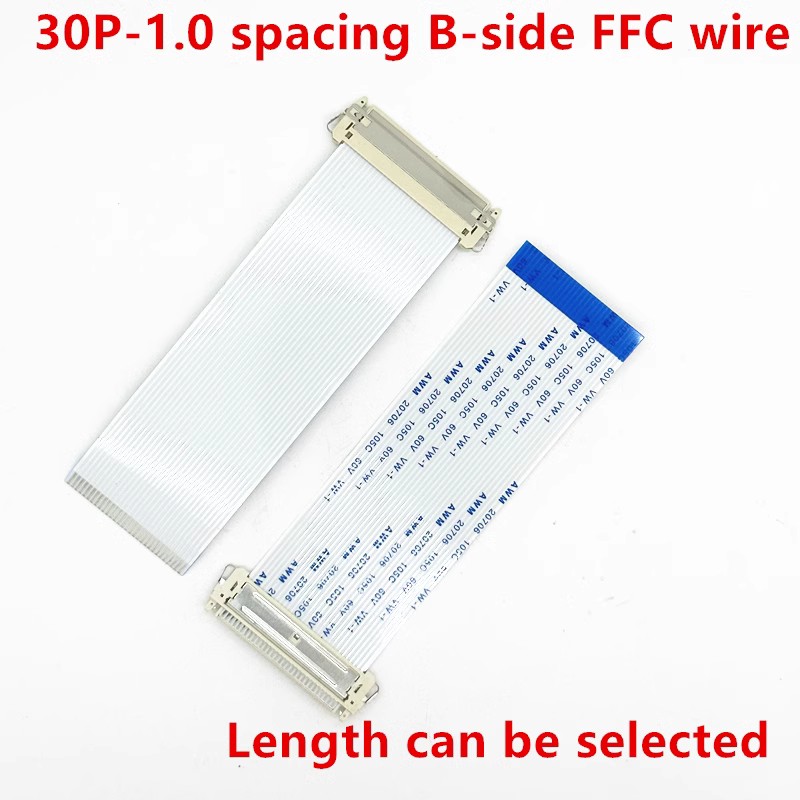

• 30-pin flexible flat cable with 1.0 pitch and opposite direction connectors.
• 25cm length, ideal for TTL LCD monitors and display equipment.
• Ensures reliable signal transmission for visual displays.

What is this Flexible Flat Cable?

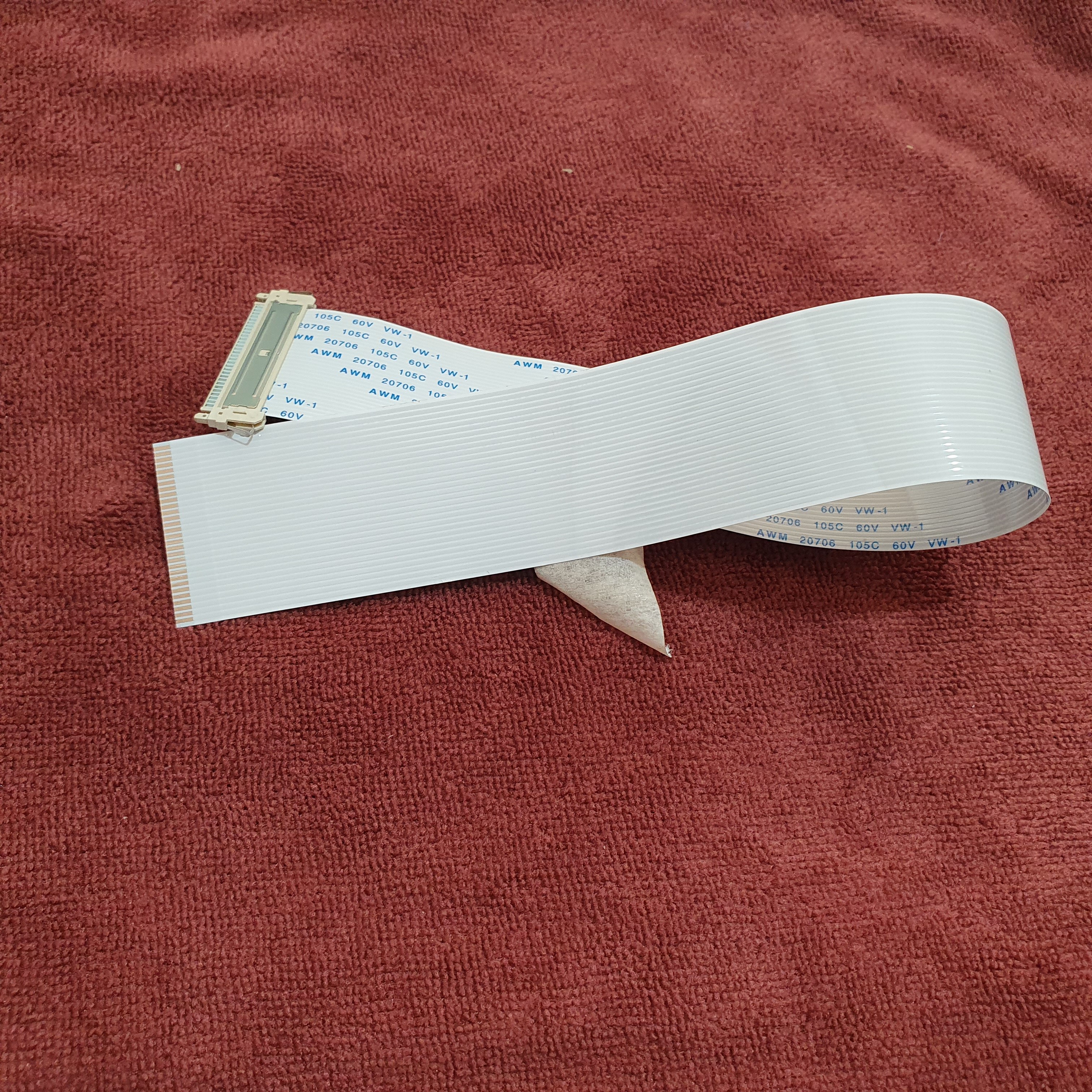

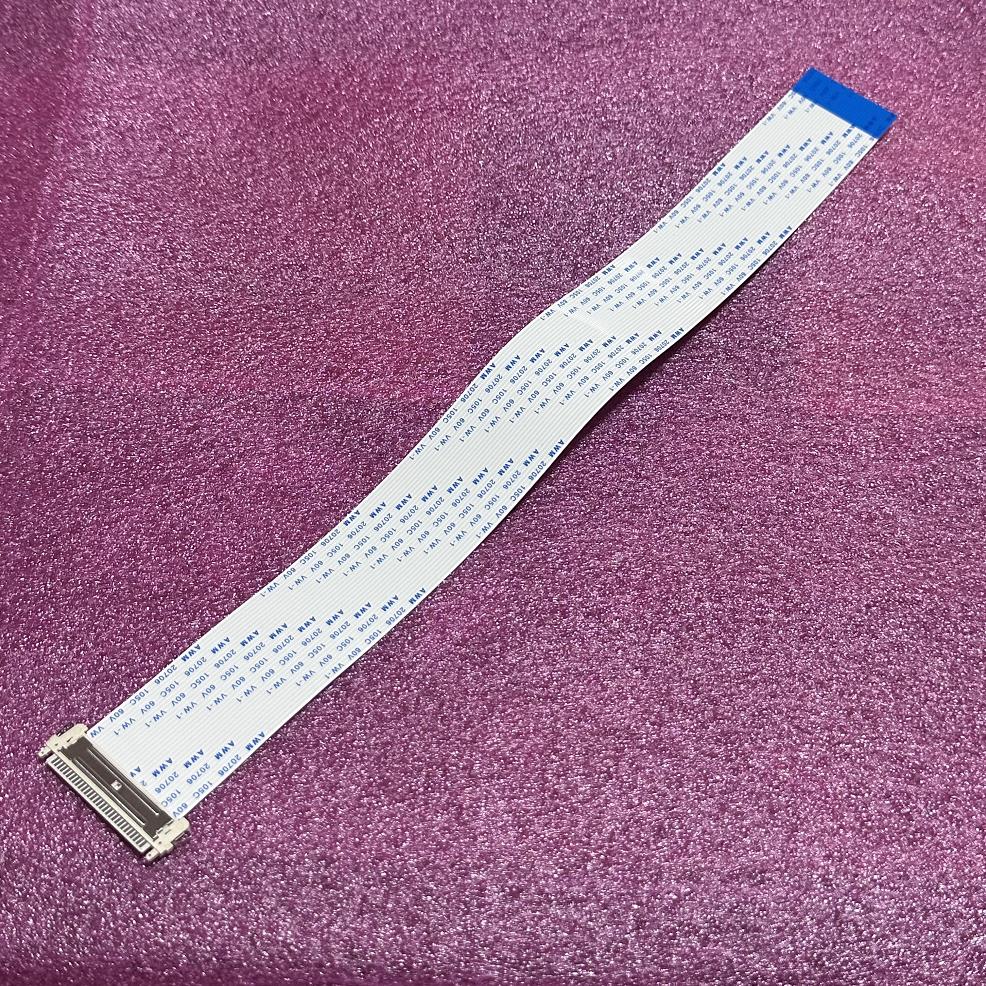

This is a 30-pin flexible flat cable (FFC) designed for connecting TTL LCD monitors. It features a 1.0mm pitch and opposite direction connectors, ensuring compatibility with specific display interfaces.

The cable measures 25cm in length, providing adequate reach for most monitor setups. Its flexible nature allows for easy routing and installation in tight spaces.

Key Features and Specifications

The FFC cable is engineered for stable signal transmission, crucial for maintaining display clarity and performance. It is suitable for use with various display equipment that requires a 30-pin connection with a 1.0 pitch.

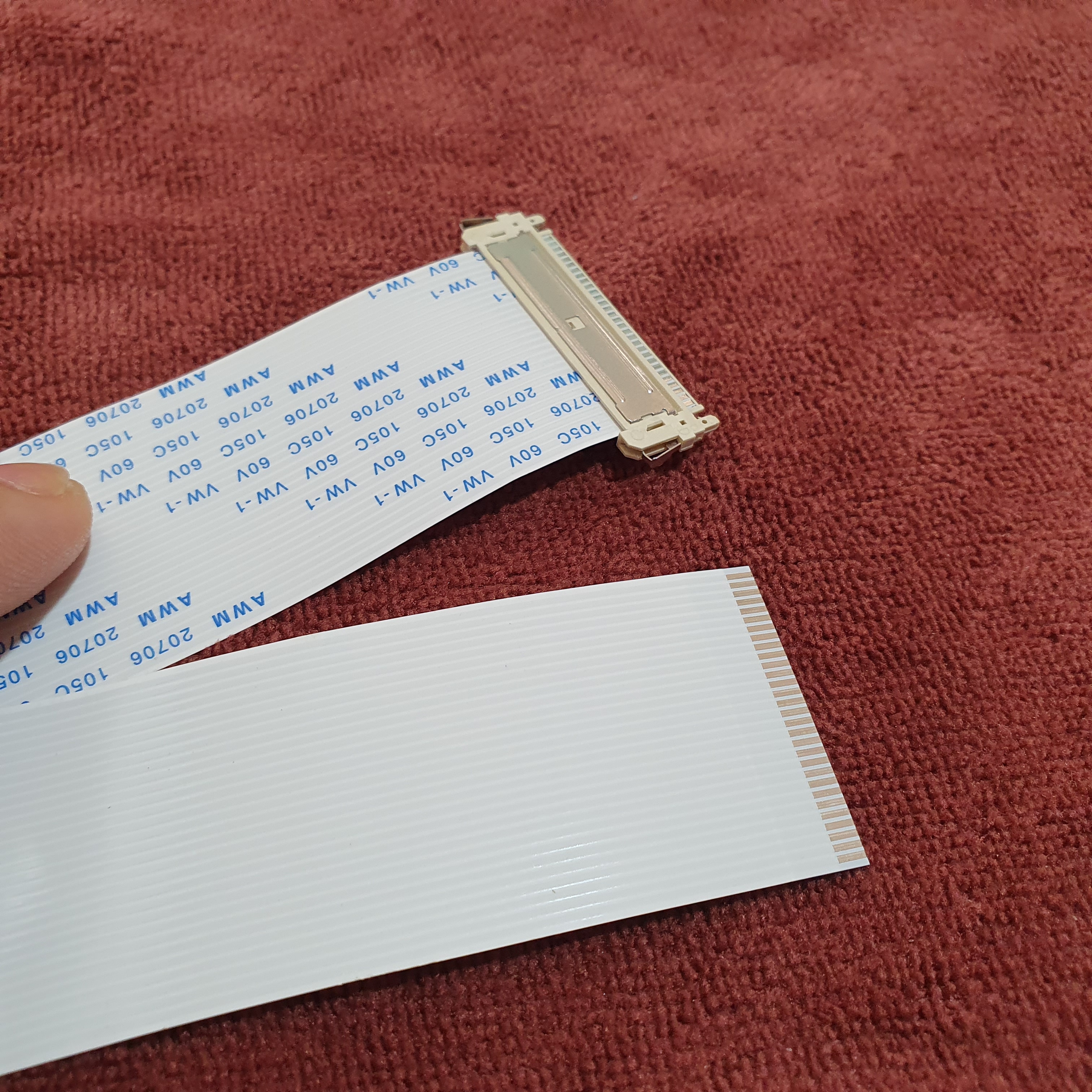

Its opposite direction connector design simplifies installation by allowing for straightforward plug-and-play functionality.

Specifications:

• Brand Name: NONE
• Certification: NONE
• High-concerned chemical: none
• Compatible Audio & Video Equipment Style: Display Equipment
• Origin: Mainland China

Frequently Asked Questions:

What is the pitch of this flexible flat cable?

The pitch of this flexible flat cable is 1.0 mm. This specification is crucial for ensuring proper connection with compatible devices.

What type of monitors is this cable compatible with?

This cable is specifically designed for TTL LCD monitors. It is also suitable for general display equipment that requires a 30-pin connection.

What are the dimensions of the cable?

The cable measures 25cm in length and 3.1cm in width. This provides a standard size for connecting display components.

Does this cable have standard or opposite direction connectors?

This flexible flat cable features opposite direction connectors. This design is important for specific interface requirements on TTL LCD monitors.
